Mainboard|ASROCK|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|A520M-HVS
53,07 €

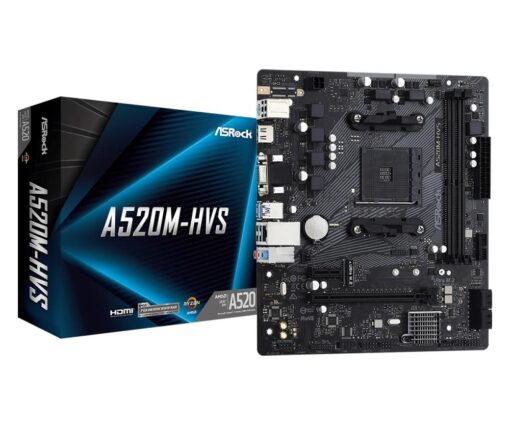

A520M-HVS
Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
6 Phase Power Design
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front)
Realtek Gigabit LAN
Noliktavā 100 prece/-es
A520M-HVS
Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
6 Phase Power Design
Supports DDR4 4733+ (OC)
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front)
Realtek Gigabit LAN
Ražotāja mājaslapa
Specifikācija |
|
| Chipset | AMD A520 |
| Socket | SAM4 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733MHz |
| Memory slots | 2 |
Expansion slots |
|
| M.2 | 1 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 3.0 1x | 1 |
Input/Output connectors |
|
| 15pin D-sub | 1 |
| Audio-In | 2 |
| Audio-Out | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 4 |
Interface |
|
| SATA | Yes |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC887 |
| Integrated LAN | Realtek (Gigabit) |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Shipping box quantity | 20 |
Shipping/Package Box Dimensions |
|
| Shipping Box Depth | 62cm |
| Shipping Box Height | 50cm |
| Shipping Box Weight | 17kg |
| Shipping Box Width | 30cm |
| Unit Brutto Volume | 0.00465cubm |
| Unit Net Weight | 0.6kg |
| Unit Gross Weight | 0.85kg |
AMD A520|SAM4|Micro-ATX|DDR4|4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio Realtek ALC887|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10|TPM Header
| Svars | 17 kg |
|---|---|
| Dimensijas | 62 × 30 × 50 cm |
