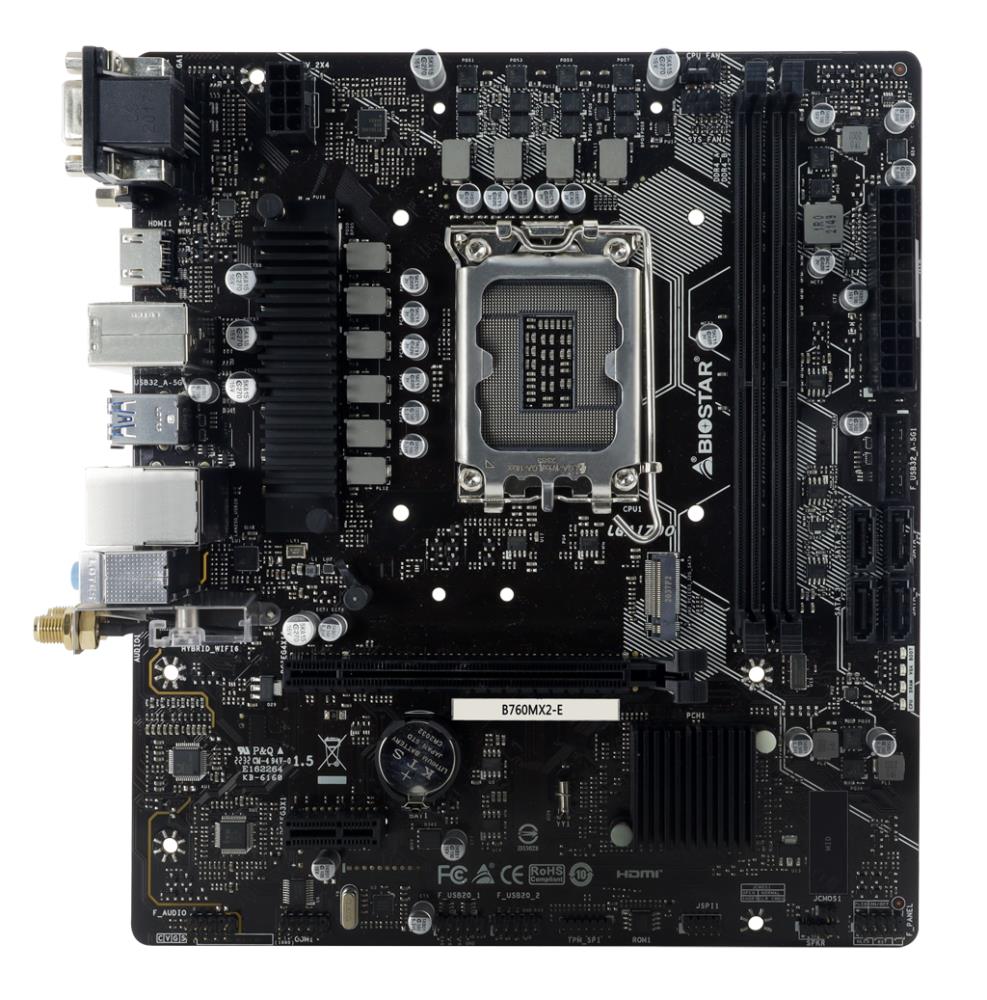

Mainboard|BIOSTAR|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B760MX2-E
92,28 €
– Supports 12th/ 13th Generation Intel Core™ Processor
– Intel B760 single chip architecture
– Supports 2-DIMM DDR5 up to 64 GB Memory
– Supports PCIe 4.0
– Supports PCIe M.2 4.0 (64Gb/s)
– Supports HDMI 4K2K
– Supports USB 3.2 Gen1
– Support WiFi 6 & 6E module (No WiFi card included)
– Support 2.5G LAN
Noliktavā 2 prece/-es
– Supports 12th/ 13th Generation Intel Core™ Processor
– Intel B760 single chip architecture
– Supports 2-DIMM DDR5 up to 64 GB Memory
– Supports PCIe 4.0
– Supports PCIe M.2 4.0 (64Gb/s)
– Supports HDMI 4K2K
– Supports USB 3.2 Gen1
– Support WiFi 6 & 6E module (No WiFi card included)
– Support 2.5G LAN
Specifikācija |
|
| Model | B760MX2-E |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/5200/5400/5600/6000MHz |
| Memory slots | 2 |
Expansion slots |
|
| M.2 | 2 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 4.0 16x | 1 |
Input/Output connectors |
|
| 15pin D-sub | 1 |
| Audio port | 3 |
| DVI-D | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 2 |
Interface |
|
| Bluetooth | Yes |
| SATA | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| WiFi | Yes |
| Integrated video | Depending on CPU |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10 |
| TPM | Header |
| Included Accessories | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x M.2 Anchor 1 x WiFi antenna accessories |
| Shipping box quantity | 1 |
Shipping/Package Box Dimensions |
|
| Shipping Box Depth | 27cm |
| Shipping Box Height | 6cm |
| Shipping Box Weight | 0.781kg |
| Shipping Box Width | 22cm |
| Unit Brutto Volume | 0.003564cubm |
| Unit Net Weight | 0.65kg |
| Unit Gross Weight | 0.781kg |
Intel B760 Express|LGA1700|Micro-ATX|DDR5|6000/5600/5400/5200/4800 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
| Svars | 0,781 kg |
|---|---|
| Dimensijas | 27 × 22 × 6 cm |
