64 IP channel max, up to 32MP resolution
Max: 384Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
2x VGA/HDMI up to 4K output, decoding up to 2-channel 32 MP @ 20 fps
8 SATA III ports, up to 16 TB for a single HDD, RAID 0/1/5/6/10
No front panel control, 16/8 alarm I/O, 2 USB, Audio I/O: 1/2, eSATA, RS-232, RS-485

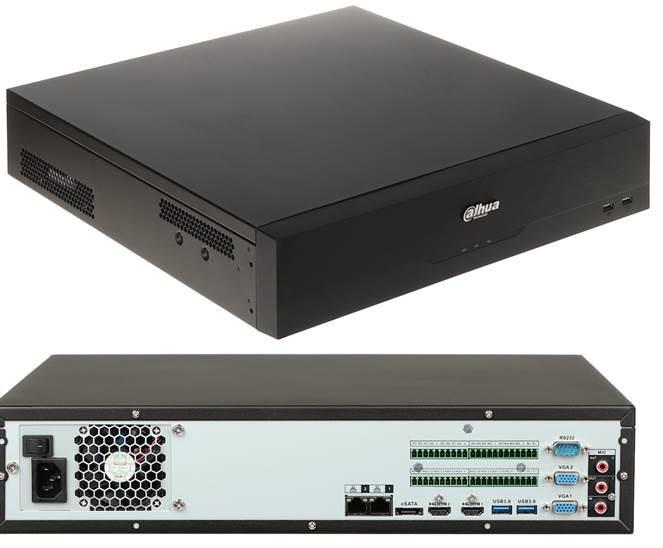

Rack/desktop mounted chassis
AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
Free IP monitoring software available
Other brands IP cameras supported
Ražotāja mājaslapa
Specifikācija |
|
Model | NVR5864-EI |
Number of Channels | 64 |
Mounting Type |
|
Desktop/pedestal | Yes |
Rack | Yes |
CPU | Embedded Linux |
Integrated LAN | Gigabit |
Input/Output connectors |
|
15pin D-sub | 2 |
Alarm In | 16 |
Alarm Out | 8 |
Audio-In | 1 |
Audio-Out | 2 |
eSATA | 1 |
HDMI | 2 |
RJ45 | 2 |
RS232 | 1 |
RS-485 | 1 |
USB 2.0 | 2 |
Power supply requirements | 100–240 VAC, 50-60 Hz |
Dimensions | 439.9 × 457.9 x 89.0 mm |
Shipping box quantity | 1 |
Shipping/Package Box Dimensions |
|
Shipping Box Depth | 56cm |
Shipping Box Height | 22cm |
Shipping Box Weight | 8.9kg |
Shipping Box Width | 57cm |
Unit Brutto Volume | 0.07022cubm |
Unit Net Weight | 6.4kg |
Unit Gross Weight | 8.9kg |
