ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build.
Specification |
|
Chipset | AMD B550 |
Socket | SAM4 |
Form Factor | ATX |
Memory type | DDR4 |
Frequency speed | 2133/2666/2800/3000/3200/3466/3600/3866/4000/4133/4400/4600/4800/5100MHz |
Memory slots | 4 |
Expansion slots |
|
M.2 | 2 |
PCI-Express 3.0 16x | 1 |
PCI-Express 3.0 1x | 3 |
PCI-Express 4.0 16x | 1 |

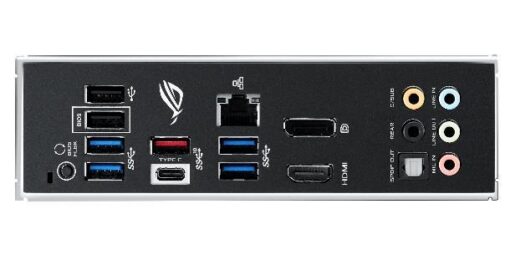

Input/Output connectors |
|
Audio port | 5 |
DisplayPort | 1 |
HDMI | 1 |
Optical S/PDIF | 1 |
RJ45 | 1 |
USB 2.0 | 2 |
USB 3.2 | 5 |
USB-C | 1 |
Interface |
|
SATA 3.0 | Yes |
USB 2.0 | Yes |
USB 3.2 | Yes |
Integrated video | Depending on CPU |
Integrated audio | Yes |
Integrated LAN | Gigabit |
RAID | SATA 0, 1, 10 |
Included Accessories | User’s manual; 4 x SATA 6Gb/s cable(s); Supporting DVD; ROG Strix stickers; Cable ties pack(s); Extension cable for Addressable LED; ROG Thank you card; M.2 SSD screw package(s); M.2 Rubber Package(s) |
Shipping box quantity | 1 |
Shipping/Package Box Dimensions |
|
Shipping Box Depth | 34cm |
Shipping Box Height | 7cm |
Shipping Box Weight | 1.675kg |
Shipping Box Width | 27.5cm |
Unit Brutto Volume | 0.006545cubm |
Unit Net Weight | 1.5kg |
Unit Gross Weight | 1.68kg |
AMD B550|SAM4|ATX|DDR4|5100/4800/4600/4400/4133/4000/3866/3600/3466/3200/3000/2800/2666/2133 MHz|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|USB 2.0|USB 3.2|SATA 3.0|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10
