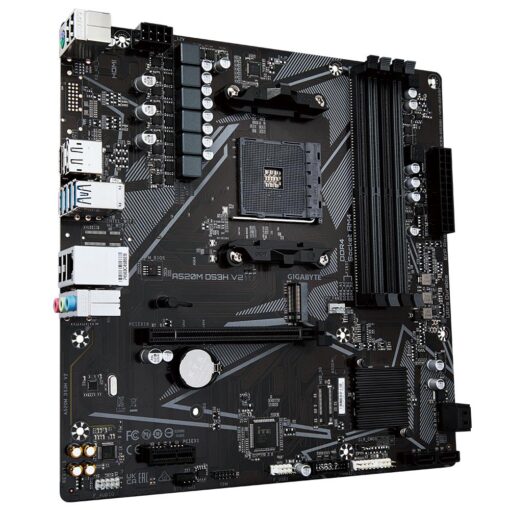

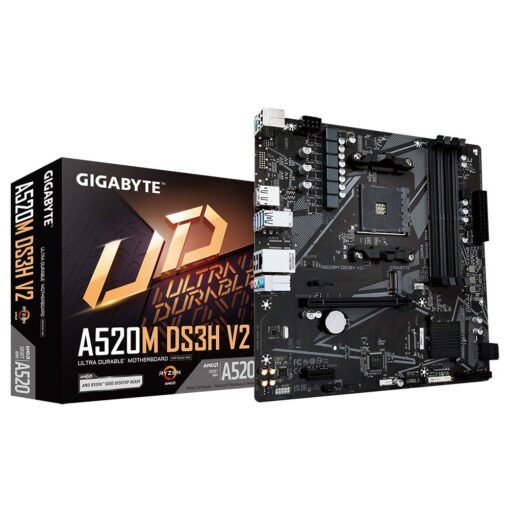

Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|A520MDS3HV21.1
65,14 €
AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
3 in stock
AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
Specification |
|
| Model | A520M DS3H V2 (rev. 1.1) |
| Chipset | AMD A520 |
| Socket | SAM4 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733MHz |
| Memory slots | 4 |
Expansion slots |
|
| M.2 | 1 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 3.0 1x | 1 |
Input/Output connectors |
|
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 4 |
Interface |
|
| SATA | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| Integrated video | Depending on CPU |
| Integrated audio | Yes |
| Integrated LAN | Yes |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Shipping box quantity | 10 |
Shipping/Package Box Dimensions |
|
| Shipping Box Depth | 57cm |
| Shipping Box Height | 29cm |
| Shipping Box Weight | 8.95kg |
| Shipping Box Width | 29cm |
| Unit Brutto Volume | 0.004794cubm |
| Unit Net Weight | 0.7kg |
| Unit Gross Weight | 0.895kg |
MBA
| Weight | 8,95 kg |
|---|---|
| Dimensions | 57 × 29 × 29 cm |
