Mainboard|GIGABYTE|AMD B550|SAM4|ATX|Memory DDR4|Memory slots 4|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 16x|2xM.2|1xDVI-D|1xHDMI|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|B550GAMINGXV21.3
105,68 €
AMD B550 Gaming Motherboard with 10+3 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, Realtek GbE LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
- Realtek GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
19 in stock
AMD B550 Gaming Motherboard with 10+3 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, Realtek GbE LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
- Realtek GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Specification |
|
| Model | B550 GAMING X V2 (rev. 1.3) |
| Chipset | AMD B550 |
| Socket | SAM4 |
| Form Factor | ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733MHz |
| Memory slots | 4 |
Expansion slots |
|
| M.2 | 2 |
| PCI-Express 3.0 1x | 3 |
| PCI-Express 3.0 2x | 1 |
| PCI-Express 4.0 16x | 1 |

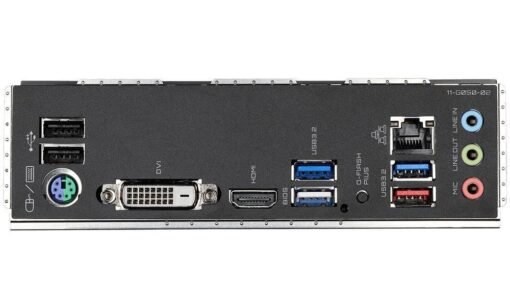

Input/Output connectors |
|
| Audio-In | 2 |
| Audio-Out | 1 |
| DVI-D | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 4 |
Interface |
|
| SATA | Yes |
| Integrated video | Depending on CPU |
| Integrated audio | Yes |
| Integrated LAN | Gigabit |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Shipping box quantity | 1 |
Shipping/Package Box Dimensions |
|
| Shipping Box Depth | 34cm |
| Shipping Box Height | 8cm |
| Shipping Box Weight | 1.48kg |
| Shipping Box Width | 27cm |
| Unit Brutto Volume | 0.007344cubm |
| Unit Net Weight | 1.4kg |
| Unit Gross Weight | 1.48kg |
MBA
| Weight | 1,48 kg |
|---|---|
| Dimensions | 34 × 27 × 8 cm |
