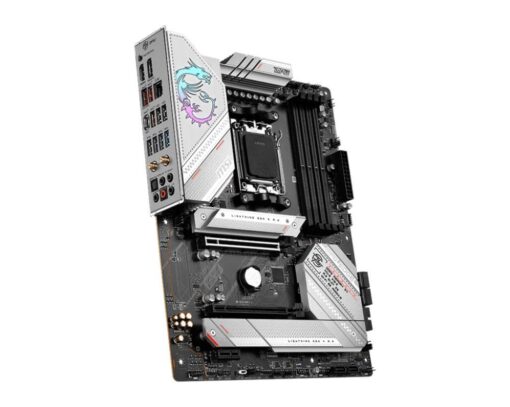

Mainboard|MSI|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|1xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|MPGB650EDGEWIFI
258,74 €
– Supports AMD Ryzen™ 7000 Series Desktop Processors
– Supports DDR5 Memory, up to 6600+(OC) MHz
– Enhanced Power Design: DRPS 14+2+1 VRM power, Core Boost, Memory Boost
– Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
– High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
– 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
– Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
– DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
– AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
5 in stock
– Supports AMD Ryzen™ 7000 Series Desktop Processors
– Supports DDR5 Memory, up to 6600+(OC) MHz
– Enhanced Power Design: DRPS 14+2+1 VRM power, Core Boost, Memory Boost
– Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
– High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
– 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
– Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
– DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
– AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification |
|
| Model | MPG B650 EDGE WIFI |
| Chipset | AMD B650 |
| Socket | SAM5 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600MHz |
| Memory slots | 4 |
Expansion slots |
|
| M.2 | 3 |
| PCI-Express 16x | 1 |
| PCI-Express 1x | 1 |
Input/Output connectors |
|
| Audio port | 5 |
| DisplayPort | 1 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 7 |
| USB-C | 1 |
Interface |
|
| Bluetooth | Yes |
| SATA | Yes |
| WiFi | Yes |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC4080 |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1, 10; NVMe 0, 1, 10 |
| TPM | Header |
| Shipping box quantity | 1 |
Shipping/Package Box Dimensions |
|
| Shipping Box Depth | 34cm |
| Shipping Box Height | 7cm |
| Shipping Box Weight | 2.031kg |
| Shipping Box Width | 27cm |
| Unit Brutto Volume | 0.006426cubm |
| Unit Net Weight | 1.4kg |
| Unit Gross Weight | 2.03kg |
AMD B650|SAM5|ATX|DDR5|6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|1xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC4080|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
| Weight | 2,031 kg |
|---|---|
| Dimensions | 34 × 27 × 7 cm |
