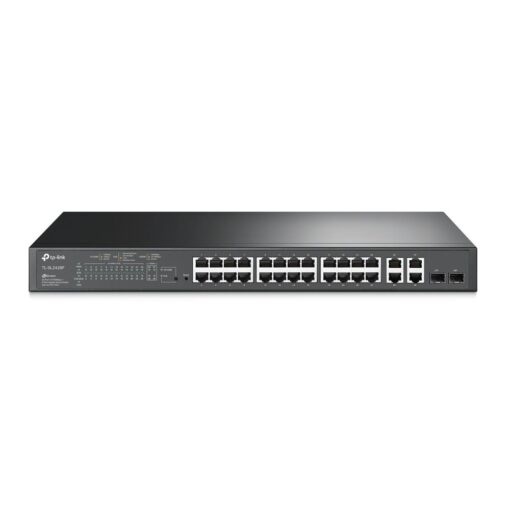

JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+
– Features 24 PoE ports, with total PoE power budget of 250 W* and useful PoE power management features
– Integrated security strategy including 802.1Q VLAN, Port Security, and Storm control help protect LAN area investment
– L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
– WEB/CLI managed modes, SNMP, RMON bring abundant management features
– Dual Firmware Image improves the reliability and uptime of your network
Specification |
|
Model name | TL-SL2428P |
Mounting Type |
|
Rack | Yes |
Primary port count | 24 |
LAN Ports |
|
10/100M | 24 |
Combo 10/100/1000M-T/SFP | 2 |
Network standard |
|
IEEE 802.11d | Yes |
IEEE 802.1p | Yes |
IEEE 802.1Q | Yes |
IEEE 802.1s | Yes |
IEEE 802.1w | Yes |
IEEE 802.1x | Yes |
IEEE 802.3ab | Yes |
IEEE 802.3ad | Yes |
IEEE 802.3af | Yes |
IEEE 802.3at | Yes |
IEEE 802.3az | Yes |
IEEE 802.3i | Yes |
IEEE 802.3u | Yes |
IEEE 802.3x | Yes |
IEEE 802.3z | Yes |
PoE+ ports | 24 |
PoE power budget | 250Watts |
Switching capacity | 12.8Gbps |
Forwarding rate | 9.5Mpps |
Dimensions | 440 x 180 x 44 mm |
Shipping box quantity | 1 |
Shipping/Package Box Dimensions |
|
Shipping Box Depth | 53cm |
Shipping Box Height | 8cm |
Shipping Box Weight | 3.064kg |
Shipping Box Width | 25cm |
Unit Brutto Volume | 0.0106cubm |
Unit Net Weight | 2.8kg |
Unit Gross Weight | 3.06kg |
Rack|24×10/100M|2xCombo 10/100/1000M-T/SFP|IEEE 802.1p|IEEE 802.1Q|IEEE 802.3ab|IEEE 802.3ad|IEEE 802.3af|IEEE 802.3at|IEEE 802.3az|IEEE 802.3i|IEEE 802.3u|IEEE 802.3x|IEEE 802.3z|IEEE 802.11d|IEEE 802.1s|IEEE 802.1x|IEEE 802.1w|PoE+ ports 24|PoE power budget 250 Watts|Switching capacity 12.8 Gbps|Forwarding rate 9.5 Mpps|Dimensions 440 x 180 x 44 mm|Unit Net Weight 2.8 kg
